Product presentation

Product applications

Lighting system for professional applications, sports facilities, harbours, parking areas, public and theme parks, camping grounds and generally any lighting systems in which low voltage and portability are requested.
Indoor lighting, shopping malls, shops, hotels, cinemas and discos. Outdoor illumination for buildings, monuments and churches. Illumination of industrial buildings, assembly lines, production and quality control. Accessory applications for the automotive industry, lighting for industrial buildings, working and emergency lamps.
Lighting systems for public street lighting, parks, parking, camping, ports and portable lighting systems in low voltage.

Product description

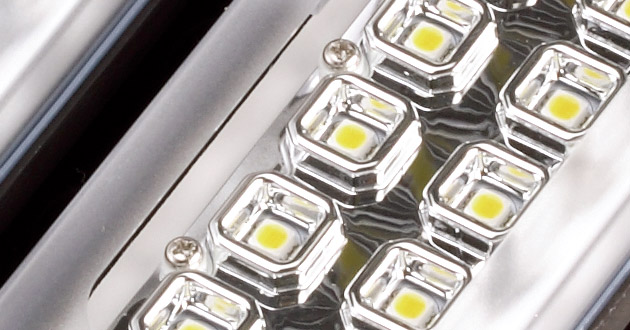

ZeligHT is a modular lighting system, IP65 certified, that can be used for countless applications. The system combines energy saving, light supply flexibility, orientation and beam aperture, easy installation.
The wide range of optics and the different available voltage outputs give extreme versatility to civilian, industrial and street light design. A complete set of power supplies is available to power single or sets of modules so as to ease cabling and systems maintenance.
Because of the low voltage output, the modules may be used for applications which require the use of batteries.

Product specification

	27W	27W	27W	25W	21.5W	21-25.6W Solar
LED Manufacturer	Nichia	Cree	Nichia	Cree	Nichia	Nichia
LED Number	18	18	18	18	18	18
Voltage	20V	20.5V	22.5V	21V	22.6V	11.5 - 14V
Consumption	27W	27W	27W	25W	21.5W	21 - 25.6W
Milliampere	450 mA	450 mA	400 mA	400 mA	300 mA	300 mA
Light flow	2050 lm	1850 lm	1850 lm	1700 lm	850 lm	1200 lm
Colour temperature	5000-7000 K	5000-7000 K	5000-7000 K	5000-7000 K	2600-3700 K	5000-7000 K
Output colour index	(CRI) 70	(CRI) 75	(CRI) 70	(CRI) 75	(CRI) 70	(CRI) 70
Use temperature	-20°C~50°C	-20°C~50°C	-20°C~50°C	-20°C~50°C	-20°C~50°C	-20°C~50°C
Use humidity	10%~85% RH	10%~85% RH	10%~85% RH	10%~85% RH	10%~85% RH	10%~85% RH
Duration*	> 50.000 h	> 50.000 h	> 50.000 h	> 50.000 h	> 50.000 h	> 50.000 h
Dimension (mm)	288x71x63	288x71x63	288x71x63	288x71x63	288x71x63	288x71x63
Weight (g)	< 850	< 850	< 850	< 850	< 850	< 850
Protection index	IP65	IP65	IP65	IP65	IP65	IP65
Safety class	Class III	Class III	Class III	Class III	Class III	Class III
RoHS - CE - UL	Compliant	Compliant	Compliant	Compliant	Compliant	Compliant

* It maintains more than 70% of the initial light
